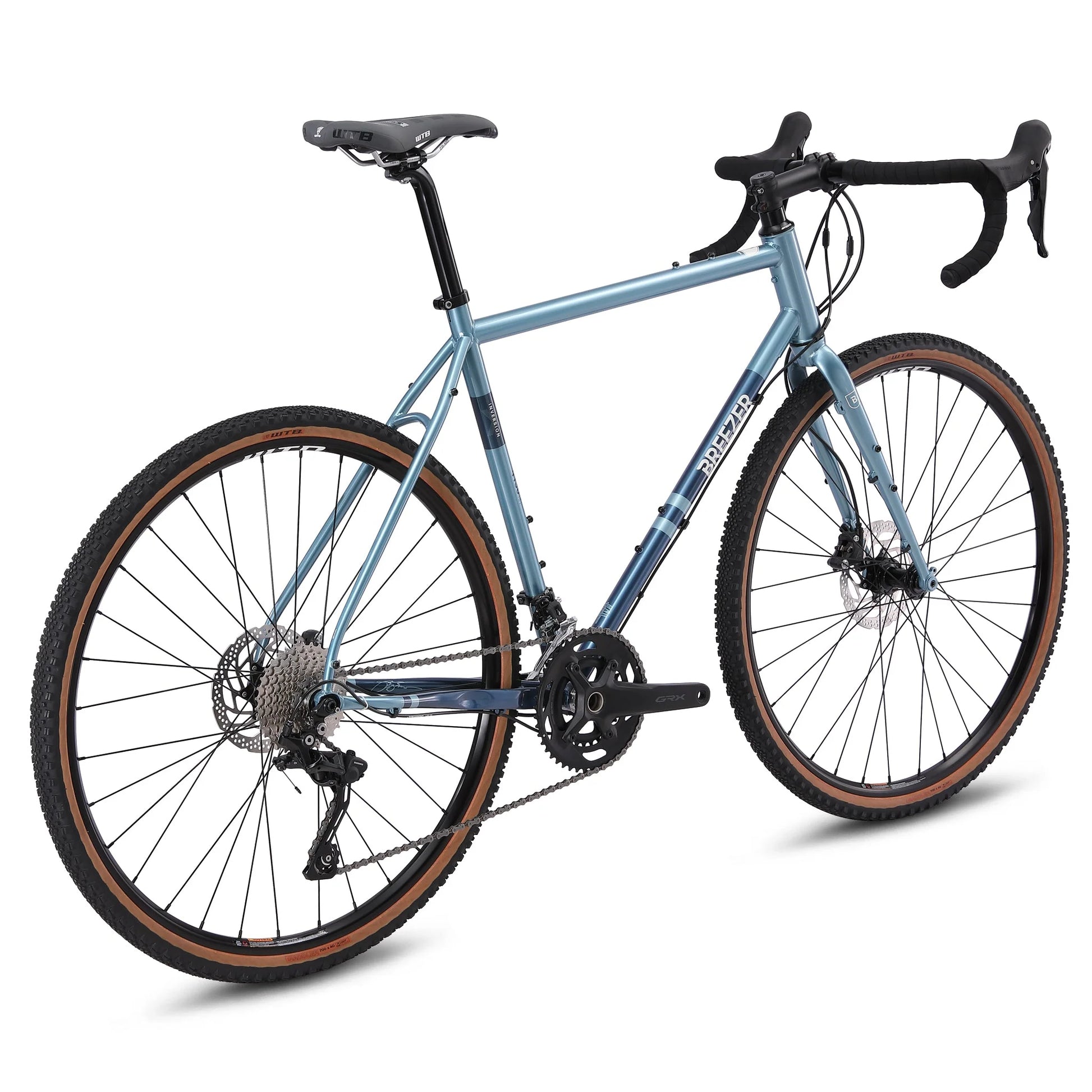

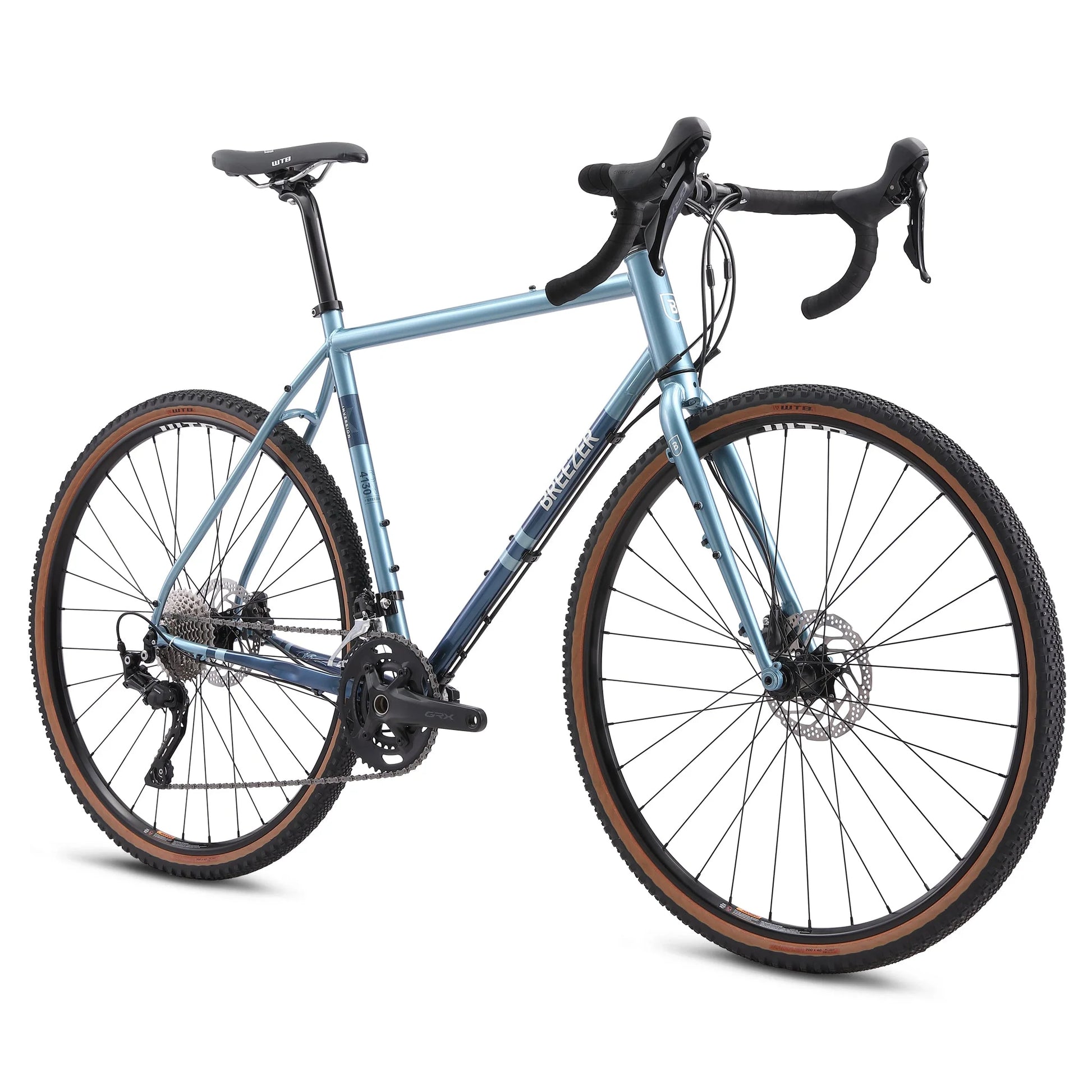

Breezer Inversion X Comp 700c

The best part of the ride starts at the end of the pavement, and that's where the Inversion X comes in. A true gravel bike, the Inversion X is designed as a versatile steed for anything from aggressive gravel to daily commuting. With wide tire clearance, a capable frame design that offers high-speed stability and control over technical terrain, plus the comfort and suppleness only found in quality steel, this bike is made for all-day graveling and getting the most out of your drop bar bike.

Key Details:

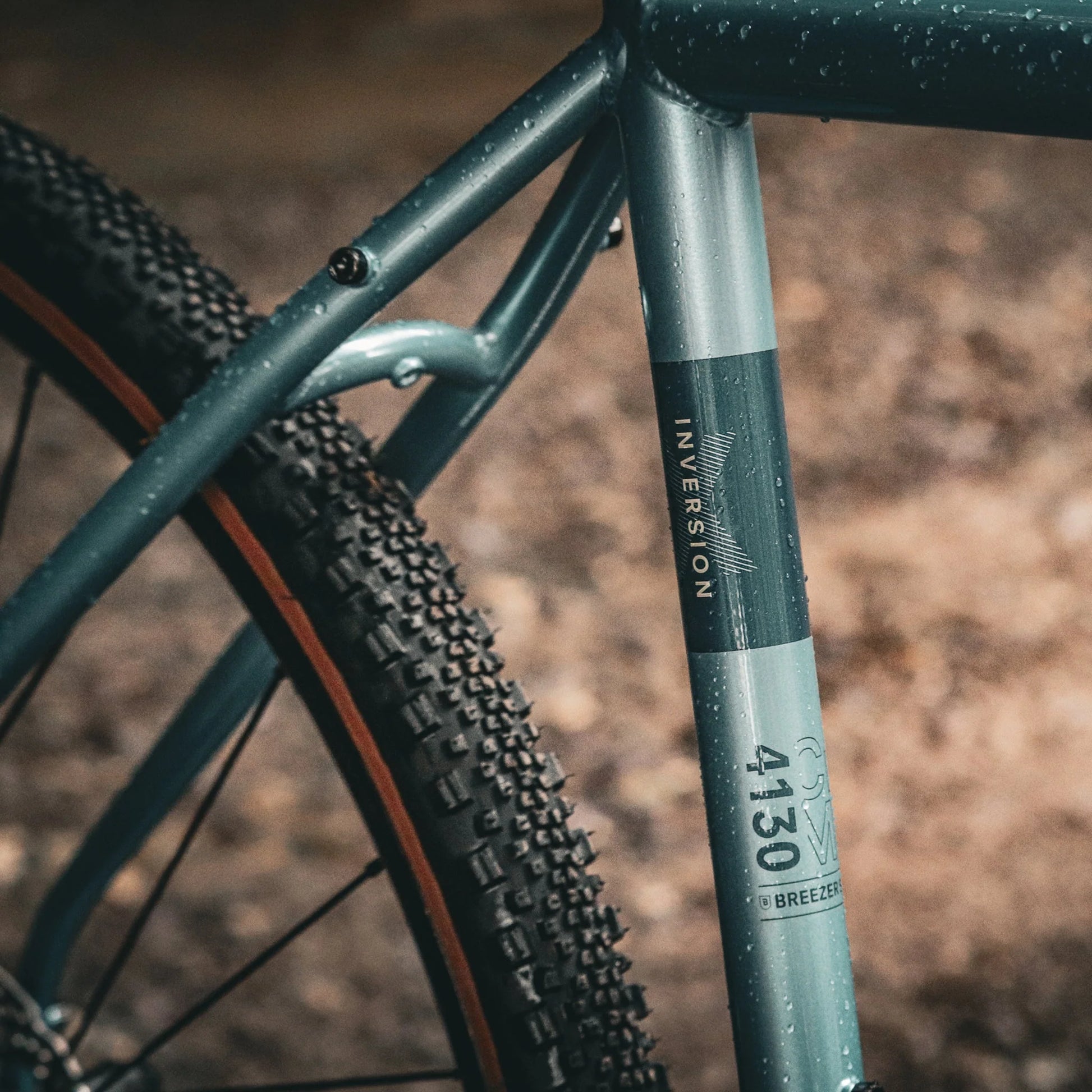

4130 high quality butted steel frame and fork
External cable routing
English threaded bottom bracket
Eyelets for fenders, racks, top tube and fork storage
Geometry that is well suited for gravel, adventure, road, touring, commuting, and cyclocross
Tire Clearance: 700cx45mm (700x40mm with fender installed), or 650bx47mm

Specifications:

Sizes	XS(49cm), S(52cm), M(54cm), L(56cm), XL(58cm), XXL(60cm)
Color(s)	Pearl Aqua Blue
Frame	Breezer butted-chromoly steel, 44mm headtube, English threaded BB, 700c, 142 x 12mm
Fork	Chromoly disc, 1 1/8", rack / fender & side bottle mounts, 100 x 12mm thru-axle
Crankset	Shimano GRX600 46-30T, 10 speed
Bottom Bracket	68mm english
Front Derailleur	Shimano GRX400
Rear Derailleur	Shimano GRX400
Shifters	Shimano GRX400, 2x10 speed
Cassette	Shimano HG500, 11-34T
Chain	KMC, 10spd
Wheelset	WTB STi23 TCS disc, 700c 32H
Tires	WTB Raddler TCS tubeless ready 700x40, folding bead
Tubes	700x40 presta
Brakeset	GRX400 Hydraulic Disc, 160mm rotors
Brake Levers	GRX400 Hydraulic Disc
Headset	FSA 1 1/8", No.10 internal, 36 degree ACB-sealed, 6.5mm aluminum top cover
Handlebar	Breezer B-Road, 6061, 31,8 clamp, 125mm drop, 70mm, 16deg flare
Stem	Breezer B-Road, 3D-forged 6061 stem body, +/-6 degree
Tape	Selle San Marco Presa Corsa Dynamic
Saddle	Selle San Marco Monza Full Start Up
Seatpost	Breezer Alloy, 6061 alloy, 27.2mm diameter
Weight	12.78 kg / 28.17 lbs

Sizing & Geometry:

Size(*Compact Frame)	XS	S	M	L	XL	XXL
	Bike Size(*Compact Frame)	49cm	52cm	54cm	56cm	58cm	60cm
A	Seat Tube, Center to Top	480	520	540	560	580	600
C	Top Tube, Effective	512	537	550	574	594	614
D	Head Tube Length	100	120	140	160	180	195
E	Seat Tube Angle	75°	74°	74°	73°	72.5°	72°
G	Head Tube Angle	68°	70°	70°	70°	71°	71°
H	Chainstay Length	435	435	435	435	435	435
I	Wheelbase	1036	1037	1050	1064	1069	1084
J	Bottom Bracket Drop	72	72	72	70	70	70
K	Fork Offset	50	50	50	50	50	50
M	Stack	521	548	567	584	606	620
N	Reach	373	380	388	395	402	412
O	Standover	752	784	802	821	842	858
	Stem mm	80	80	90	90	100	110
	Handlebar Width cm	40	42	44	46	48	48
	Crank mm	165	170	172.5	172.5	175	175
	Wheel Size	700	700	700	700	700	700
	Seat Post Diameter mm	27.2	27.2	27.2	27.2	27.2	27.2
